Marca:
Asus
Modelo:

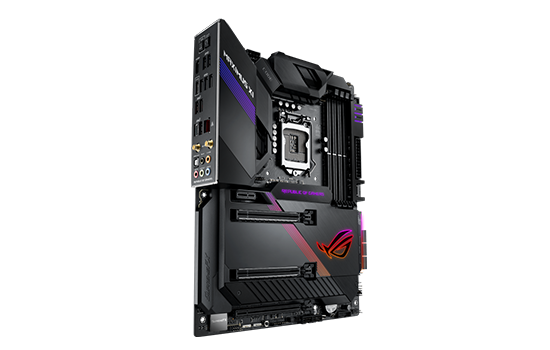

ROG MAXIMUS XI CODE
Processador:
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Clique aqui para ver a lista de processadores suportados
Chipset:
Intel Z390
Memória:
4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Slots de Expansão:
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
Intel® Z390 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) *
1 x PCIe 3.0 x16
Armazenamento:
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready
Portas USB:
Intel® Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel® Z390 Chipset :
4 x USB 3.1 Gen 2 port(s)
Intel® Z390 Chipset :
8 x USB 3.1 Gen 1 port(s)
Intel® Z390 Chipset :
4 x USB 2.0 port(s)
ASMedia® USB 3.1 Gen 1 controller :
2 x USB 3.1 Gen 1 port(s)
Audio:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
LAN (rede):
Intel® I219V
Anti-surge LANGuard
ROG GameFirst V Technology
Conectores internos:
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Start button
1 x Reset button
1 x Q-Code
Portas traseiras:
1 x HDMI
4 x USB 3.1 Gen 2
6 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Anti-surge LAN (RJ45) port
Dimensões:
ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
