Marca:
Asus
Modelo:
90MB1760-M0EAY0
CPU:
AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
* Refer to www.asus.com for CPU support list
Chipset:
AMD X570
Memória:
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen 4000 G-Series Desktop Processors
AMD RyzenTM 2000 Series Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Suporte para várias GPUs:
AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>
AMD Ryzen 3000 G-Series/ 2000 G-Series Desktop Processors
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX™ Technology
Slots de expansão:
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
AMD RyzenTM 4000 G-Series / 2000 Series Processors
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
Armazenamento:
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN:
ASUS LANGuard
Intel I211-AT
Realtek® RTL8125-CG 2.5G LAN
Áudio:
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Dedicated audio PCB layers
Unique de-pop circuit
Audio Cover
Premium Japanese audio capacitors
Power pre-regulator: Reduces power input noise to ensure consistent performance
Impedance sense for front and rear headphone outputs
High quality120dBSNR stereo playback outputand113dBSNR recording input
ESS ES9023P
Supports up to 32-Bit/192kHz playback
Audio Feature :
SupremeFX Shielding Technology
Gold-plated jacks
Optical S/PDIF out port(s) at back panel
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Recurso especiais:
ASUS USB BIOS FlashBack
AURA :
Aura RGB Strip Headers
Addressable Gen 2 Header
ASUS EZ DIY :
ASUS Q-Design :
ASUS Q-Code
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Slot
ASUS Q-DIMM
ASUS Q-Connector

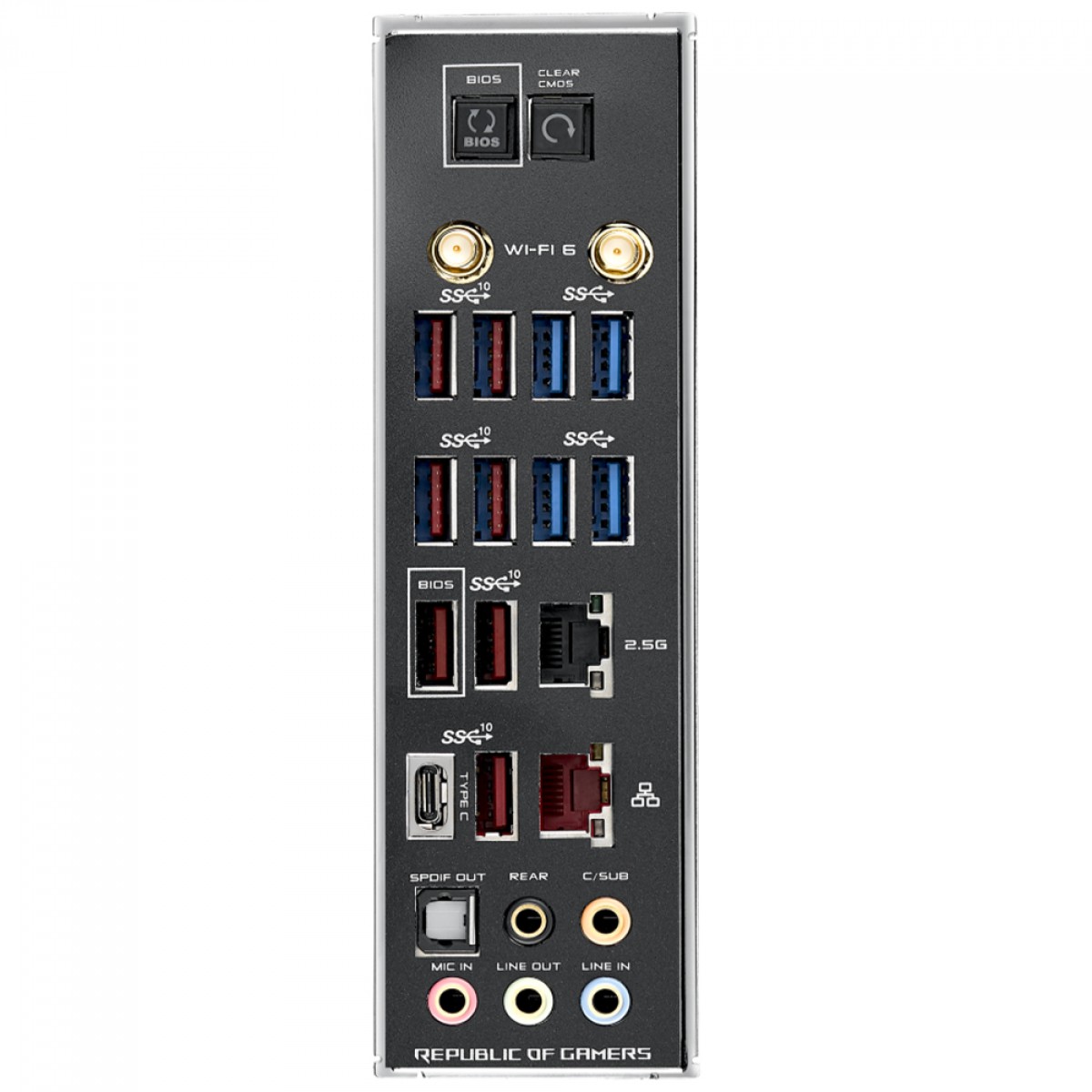

Portas no painel traseiro:
1 x BIOS FlashBack Button(s)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
1 x Anti-surge 2.5G LAN (RJ45) port
Anti-surge LAN (RJ45) port
Painel Interno:
2 x M.2 Socket 3
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Formato:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
