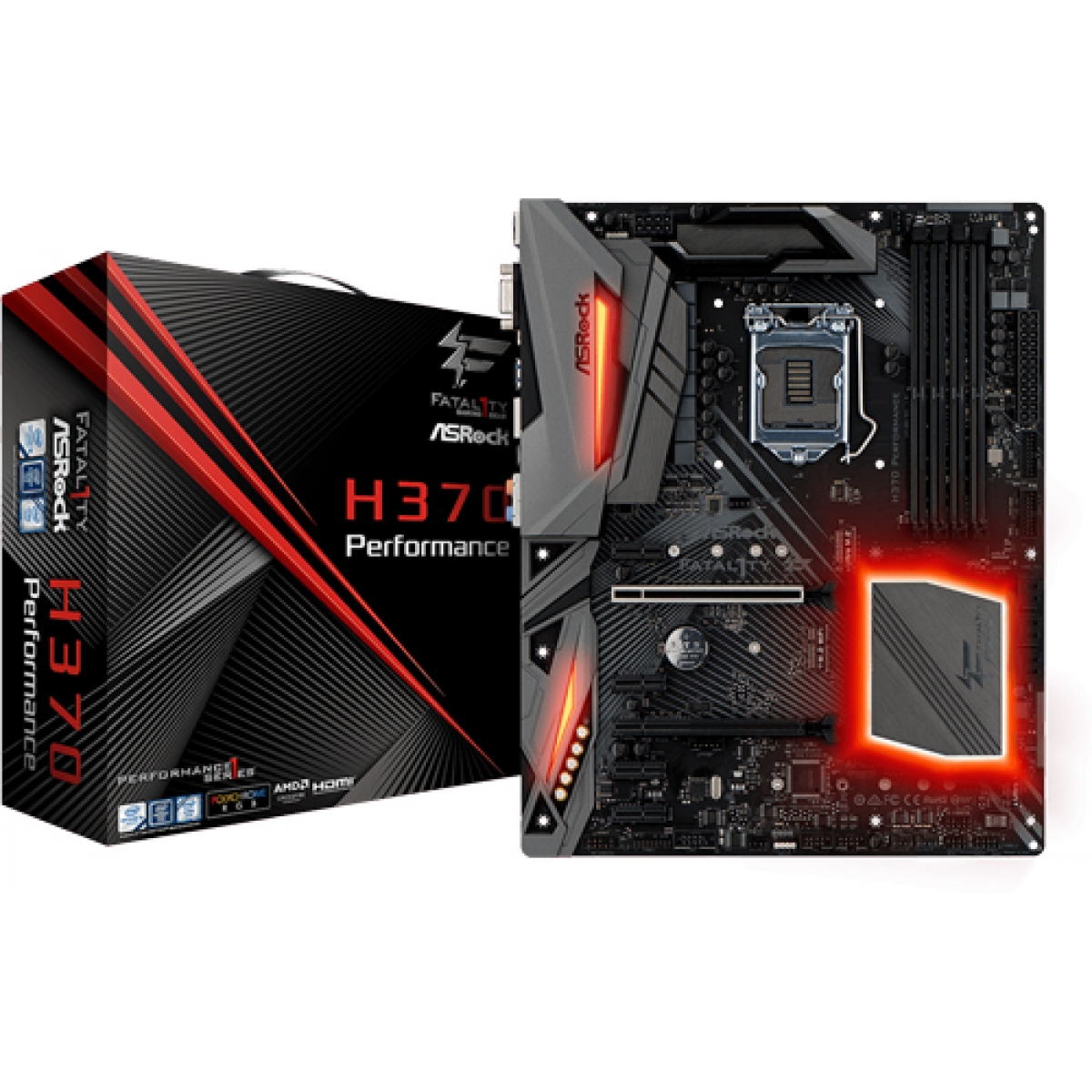

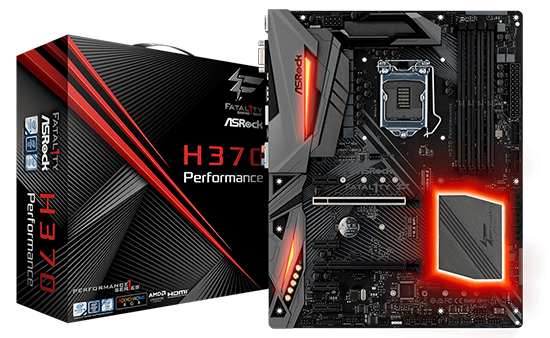

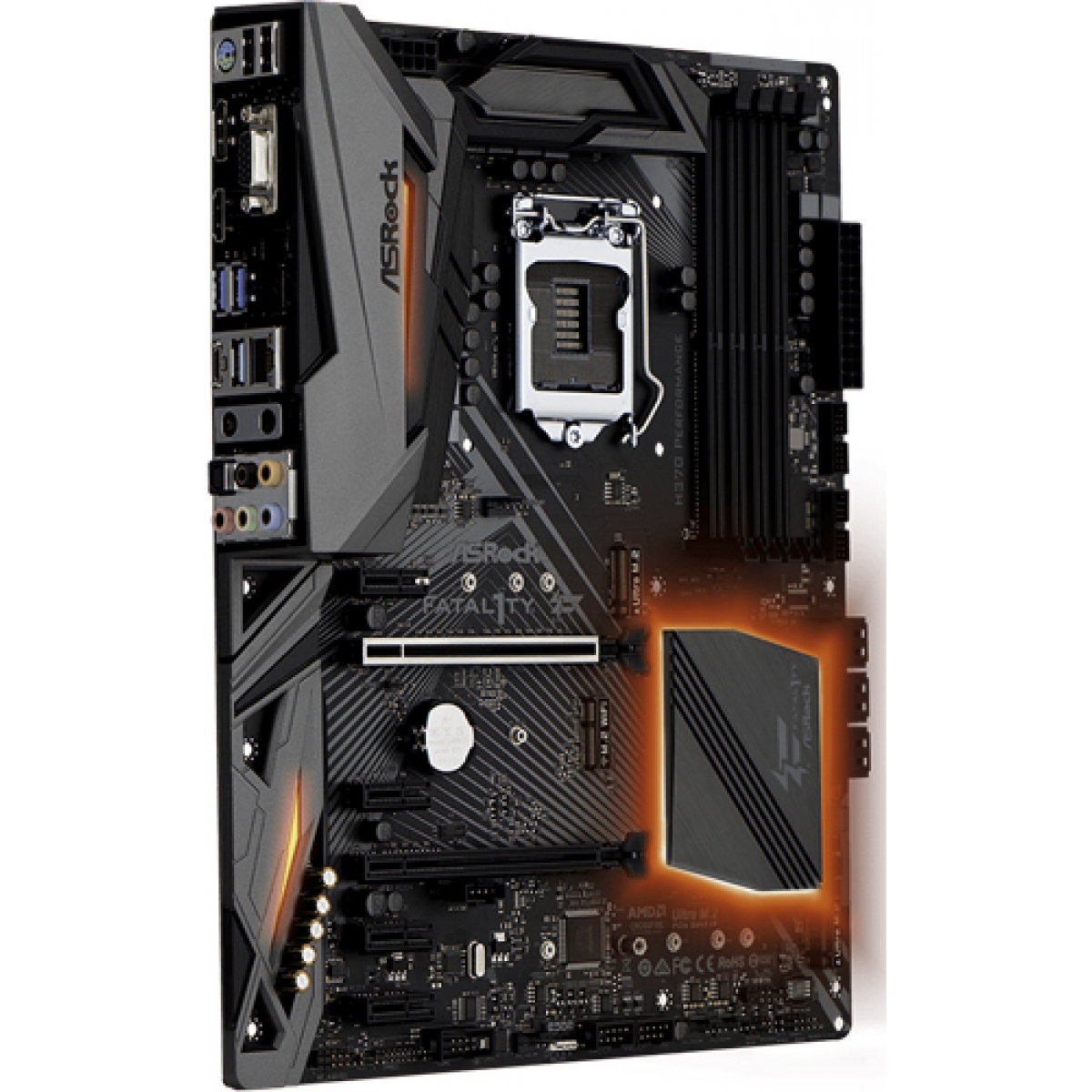

Marca:
ASRock
Modelo:
90-MXB6X0-A0UAYZ
Processador:
Suporta 8 ª Geração Intel ® Core ™ (soquete 1151)
Clique aqui para ver a lista de processadores suportados
Chipset:
Intel ® H370
Memória:
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB*
Supports Intel® Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
Slots de Expansão:
2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))*
4 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Supports AMD Quad CrossFireX™ and CrossFireX™
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)**
15μ Gold Contact in VGA PCIe Slot (PCIE2)
Armazenamento:
6 x Conectores SATA3 de 6,0 Gb / s, NCQ, AHCI e Hot Plug *

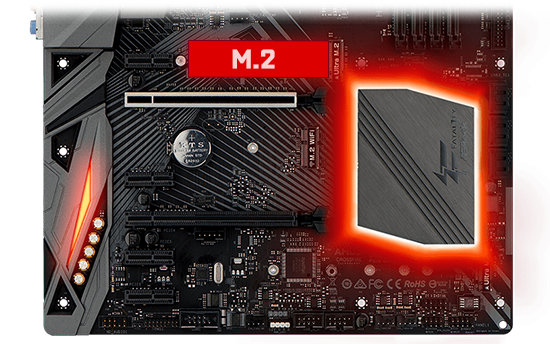

1 x Soquete Ultra M.2 (M2_1 ), suporta o tipo M Key 2230/2242/2260/2280 M.2 SATA3 módulo de 6,0 Gb / s e módulo M.2 PCI Express até Gen3 x4 (32 Gb / s) * *
1 x soquete Ultra M.2 ( M2_2), suporta o módulo M Key 2230/2242/2260/2280 M.2 módulo PCI Express até Gen3 x4 (32 Gb / s) * *
RAID:
Suporte a RAID (RAID 0, RAID 1, RAID 5, RAID 10, Tecnologia de armazenamento Intel® Rapid 15)

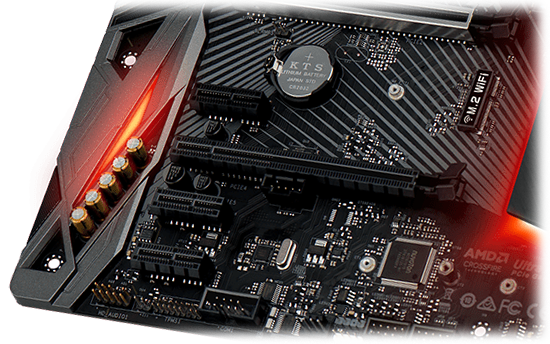

Audio:
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
Nichicon Fine Gold Series Audio Caps
120dB SNR DAC with Differential Amplifier
LAN (rede):
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Conectores internos:
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
1 x Thunderbolt™ AIC Connector (5-pin)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Portas traseiras:
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.2
1 x Optical SPDIF Out Port
2 x USB 2.0 Ports (Supports ESD Protection)*
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Dimensões:
Formato ATX Form Factor: 30.5 cm x 24.4 cm
